Advanced Linear Direct Drive Motor for Precision Automation Applications

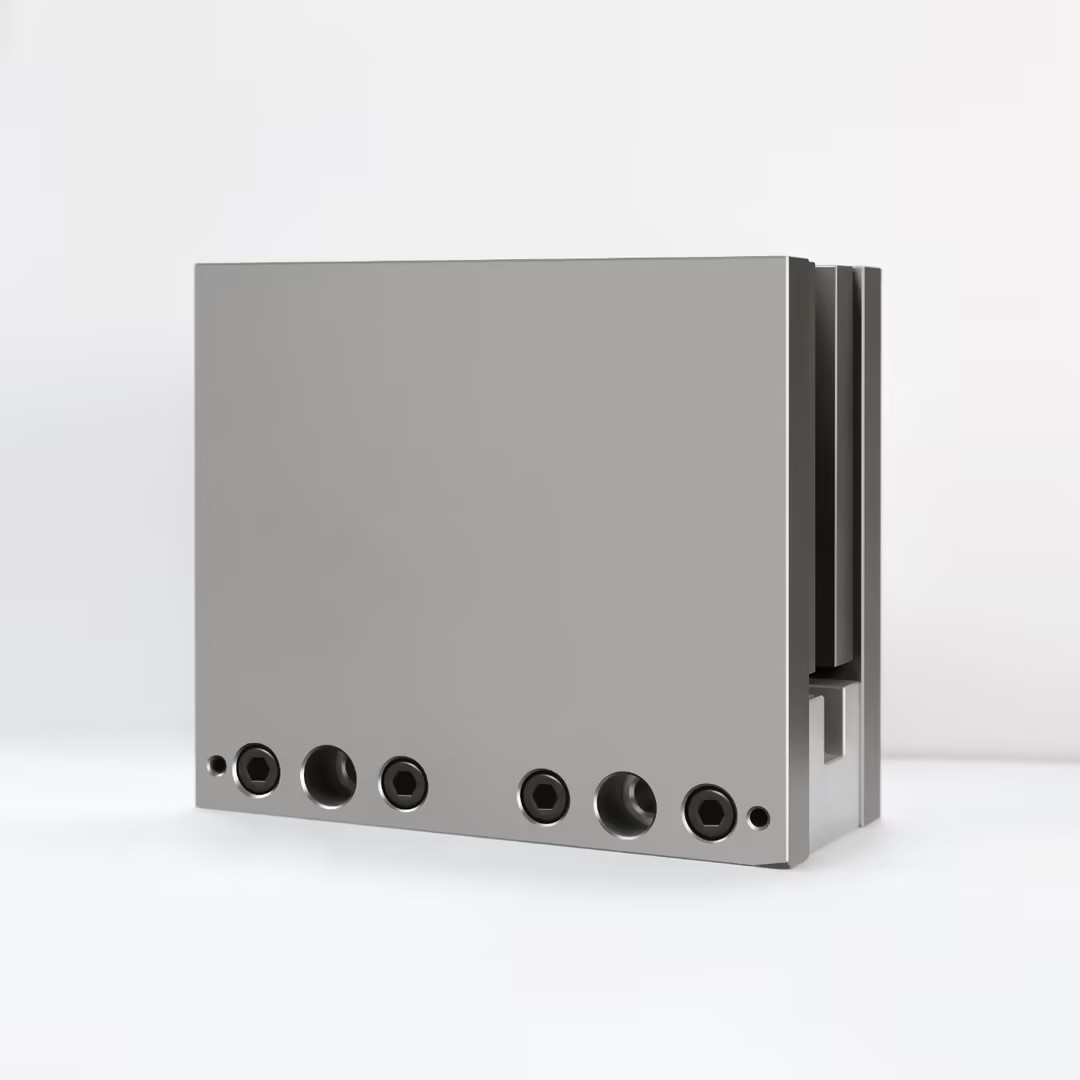

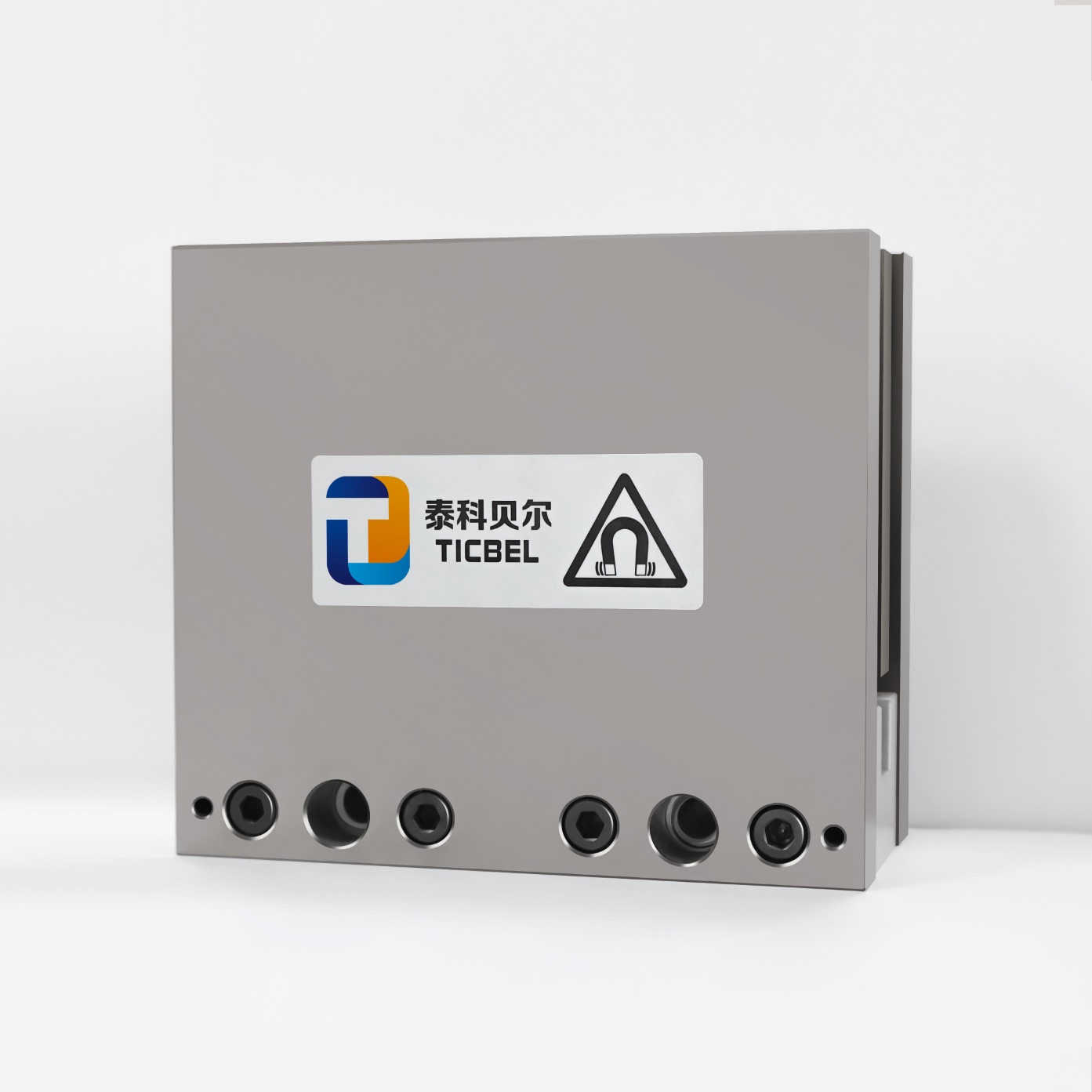

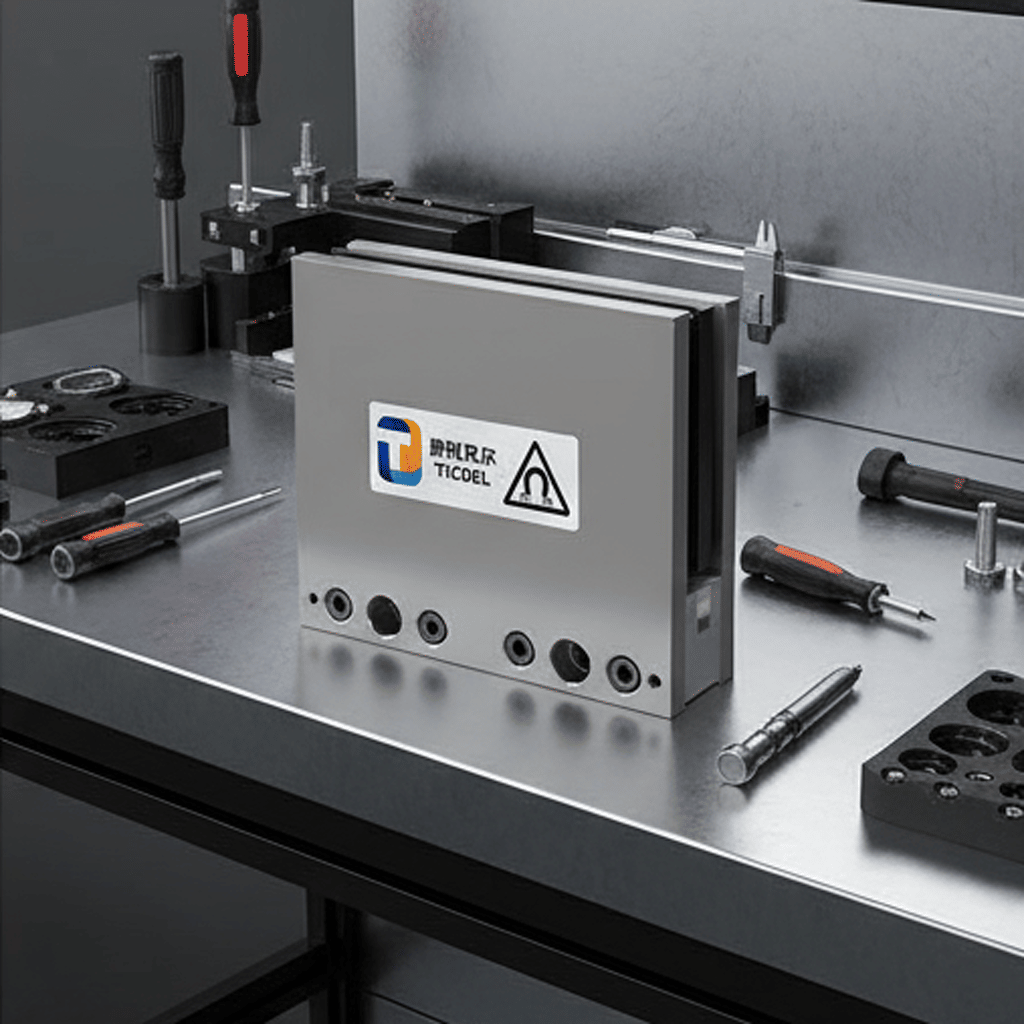

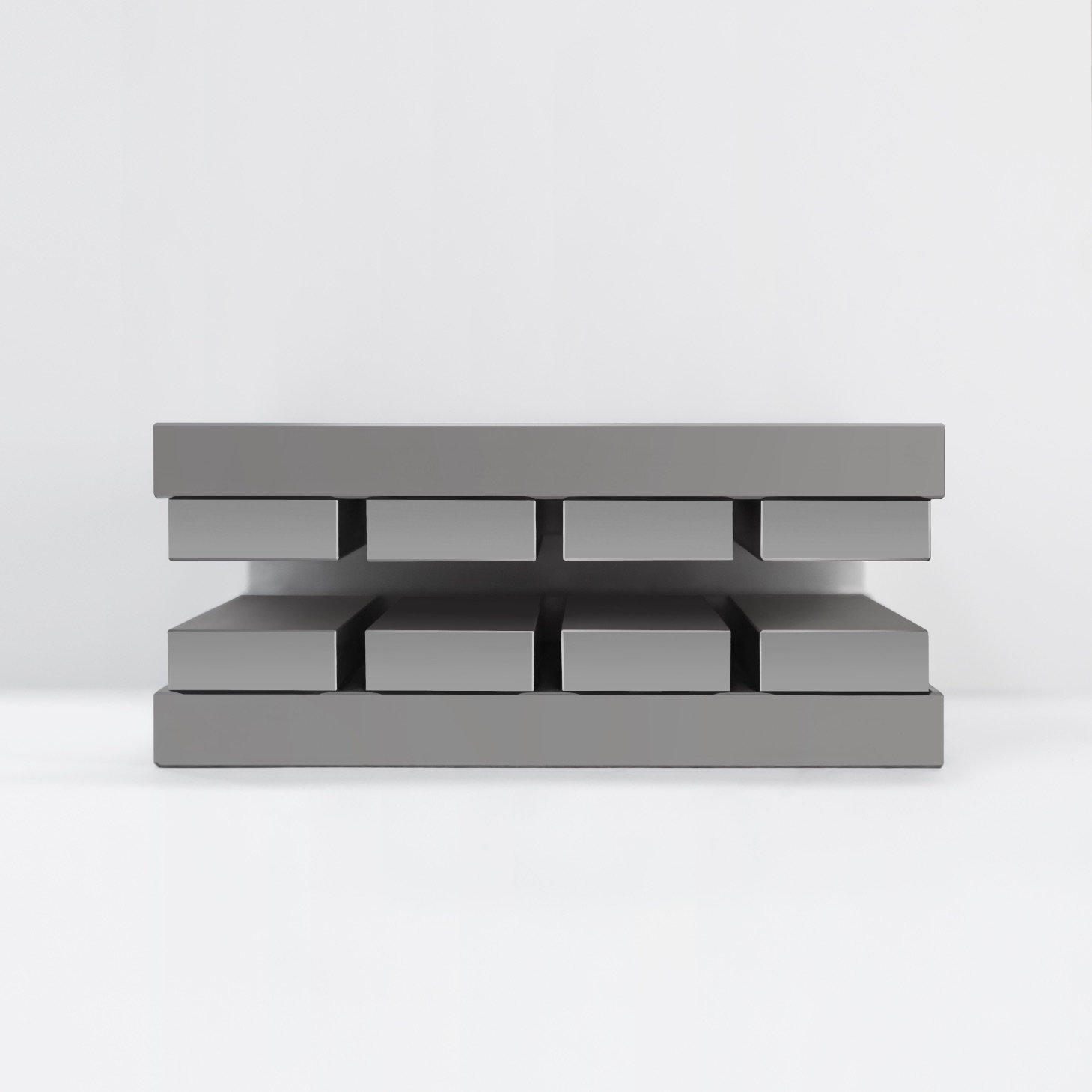

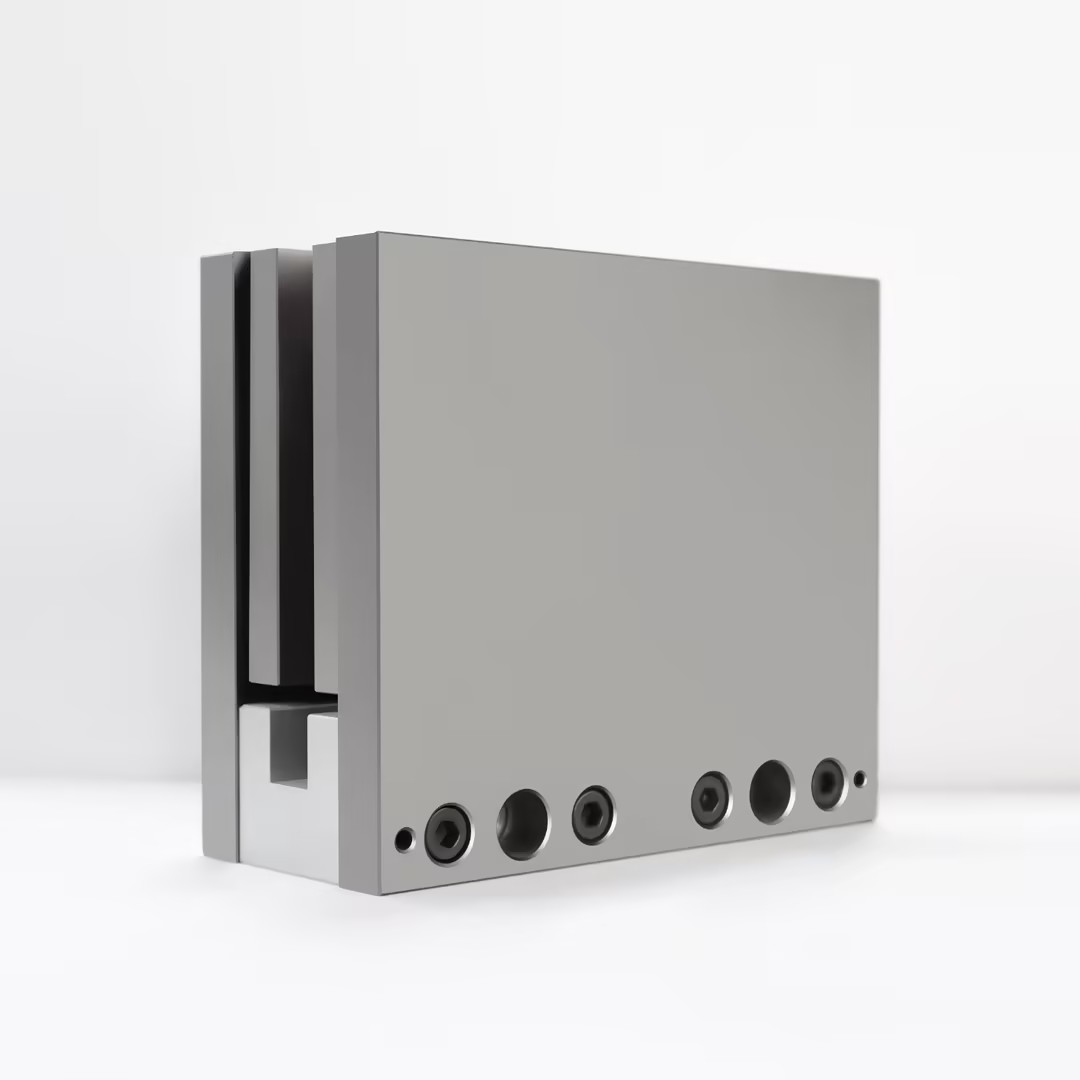

The LMU series is a family of ironless (slotless) linear motors from Ticbel, designed for high-precision motion control applications that demand smooth operation, high acceleration, and minimal heat generation.
Key Features & Advantages:
Coreless Design: Eliminates attractive forces, cogging effects, and iron losses, resulting in exceptionally smooth motion and very low heat generation.
High Efficiency: Delivers significant thrust with relatively low current input ("small current, large thrust").
Zero Maintenance: Non-contact operation ensures long service life without mechanical wear.
Series Overview & Performance:
The series includes multiple frame sizes, such as LMU15-52, LMU22-76, LMU30-114, LMU40-129, and LMU50-129. Each size offers several coil (active cell) lengths to provide different force levels. For example:
The LMU15-52 sub-series offers continuous force from 9.9N to 30N and peak force up to 106N.
The LMU30-114 sub-series provides continuous force from 71N to 355N and peak force up to 1210N.
Typical Applications:
These motors are ideal for precision stages in semiconductor manufacturing, laser processing, microscopy, metrology, and other automated equipment where positioning accuracy, velocity stability, and minimal particulate contamination are critical.

Quantity:
Availability:





Inquire Add to Basket

Linear Motor Direct Drive Motor Automatic Production Line

Product Description

The DDM series is a line of direct-drive rotary torque motors from Ticbel. They are frameless, three-phase permanent magnet synchronous motors designed for applications requiring high precision, high torque, and minimal maintenance.
Key Features & Advantages:
Direct Drive & High Precision: Features zero backlash and gearless design, eliminating mechanical transmission errors and wear.
High Torque Density: Offers a wide range of continuous torque, for example, from 35.00 Nm to 118.00 Nm for the DDM260 models.
Excellent Accuracy: Provides high repeatability (±2 arc seconds) and positional accuracy (±10 arc seconds).
Representative Models & Performance:
The series includes various models like DDM80, DDM140, DDM180, DDM260, and DDM408. Taking the DDM260 sub-series as an example:
DDM260-190: Continuous Torque: 118.00 Nm, Peak Torque: 271.00 Nm, Max Speed: 100 rpm.
DDM260-135: Continuous Torque: 76.00 Nm, Peak Torque: 175.00 Nm, Max Speed: 200 rpm.
DDM260-90: Continuous Torque: 35.00 Nm, Peak Torque: 80.00 Nm, Max Speed: 402 rpm.
Typical Applications:
These motors are well-suited for high-precision automation in industries such as semiconductor manufacturing, lithium battery production, and advanced robotics.
