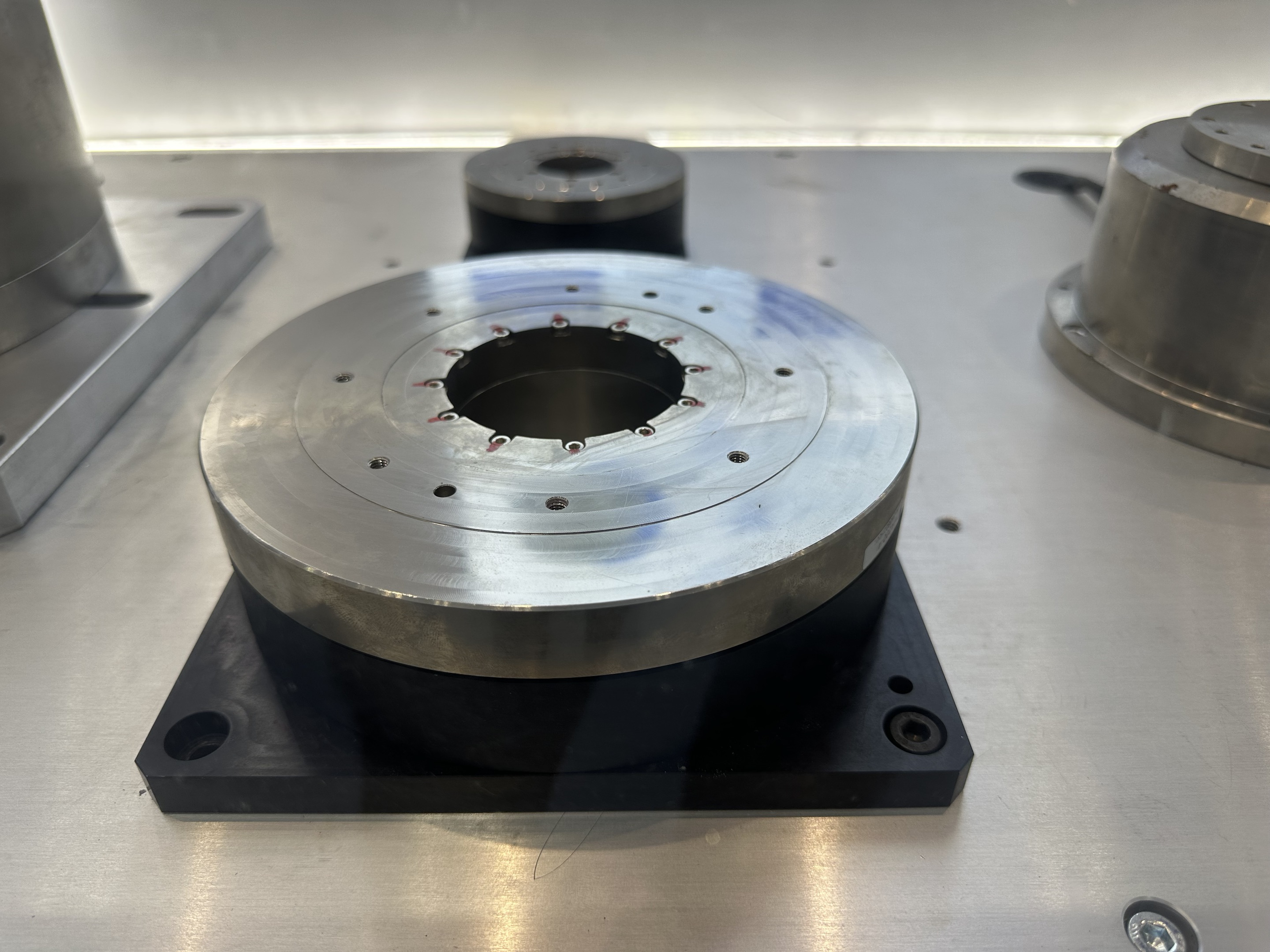

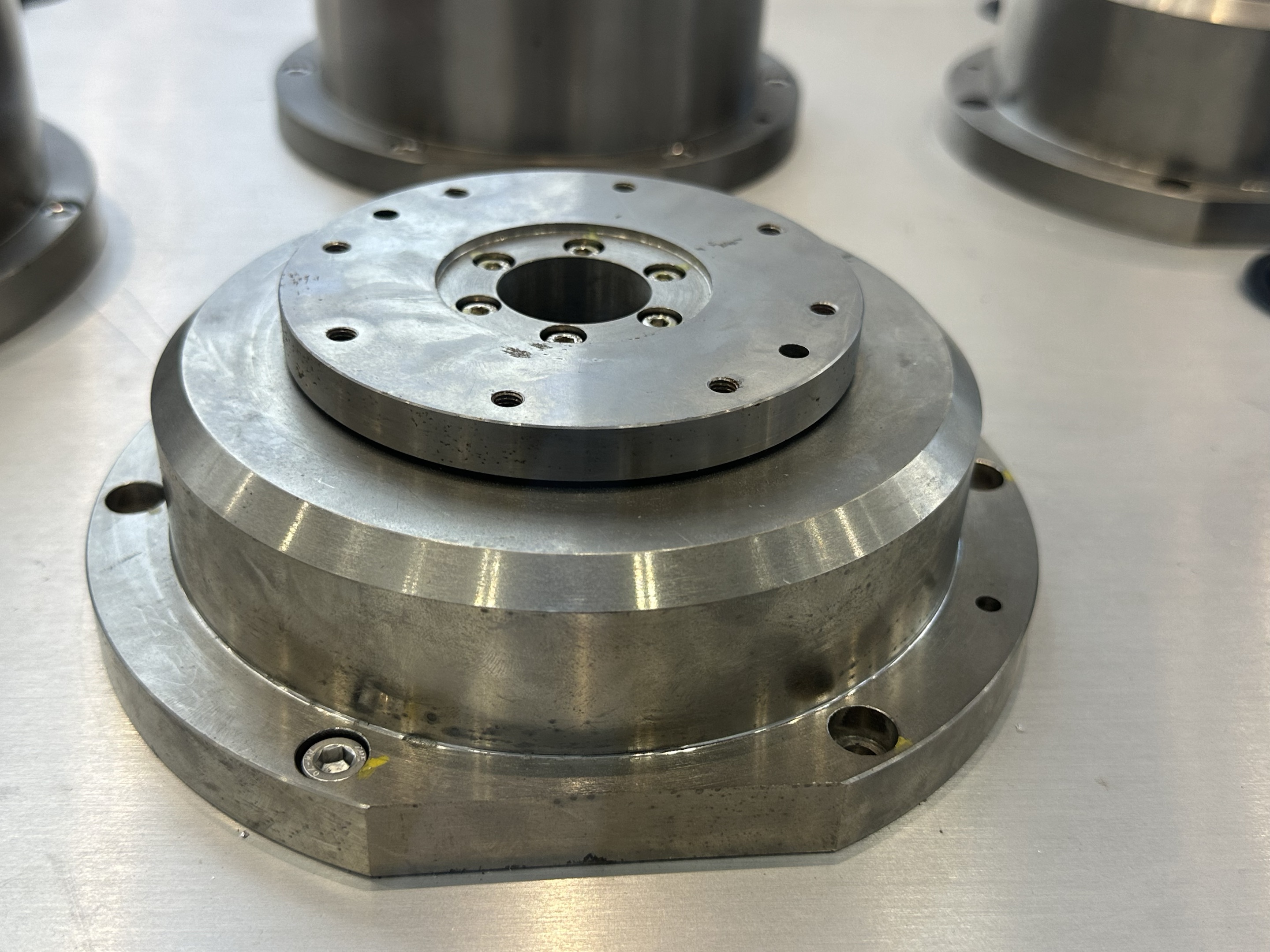

The DDM series is a line of direct-drive rotary torque motors from Ticbel. They are frameless, three-phase permanent magnet synchronous motors designed for applications requiring high precision, high torque, and minimal maintenance.
Key Features & Advantages:
Direct Drive & High Precision: Features zero backlash and gearless design, eliminating mechanical transmission errors and wear.
High Torque Density: Offers a wide range of continuous torque, for example, from 35.00 Nm to 118.00 Nm for the DDM260 models.
Excellent Accuracy: Provides high repeatability (±2 arc seconds) and positional accuracy (±10 arc seconds).
Representative Models & Performance:

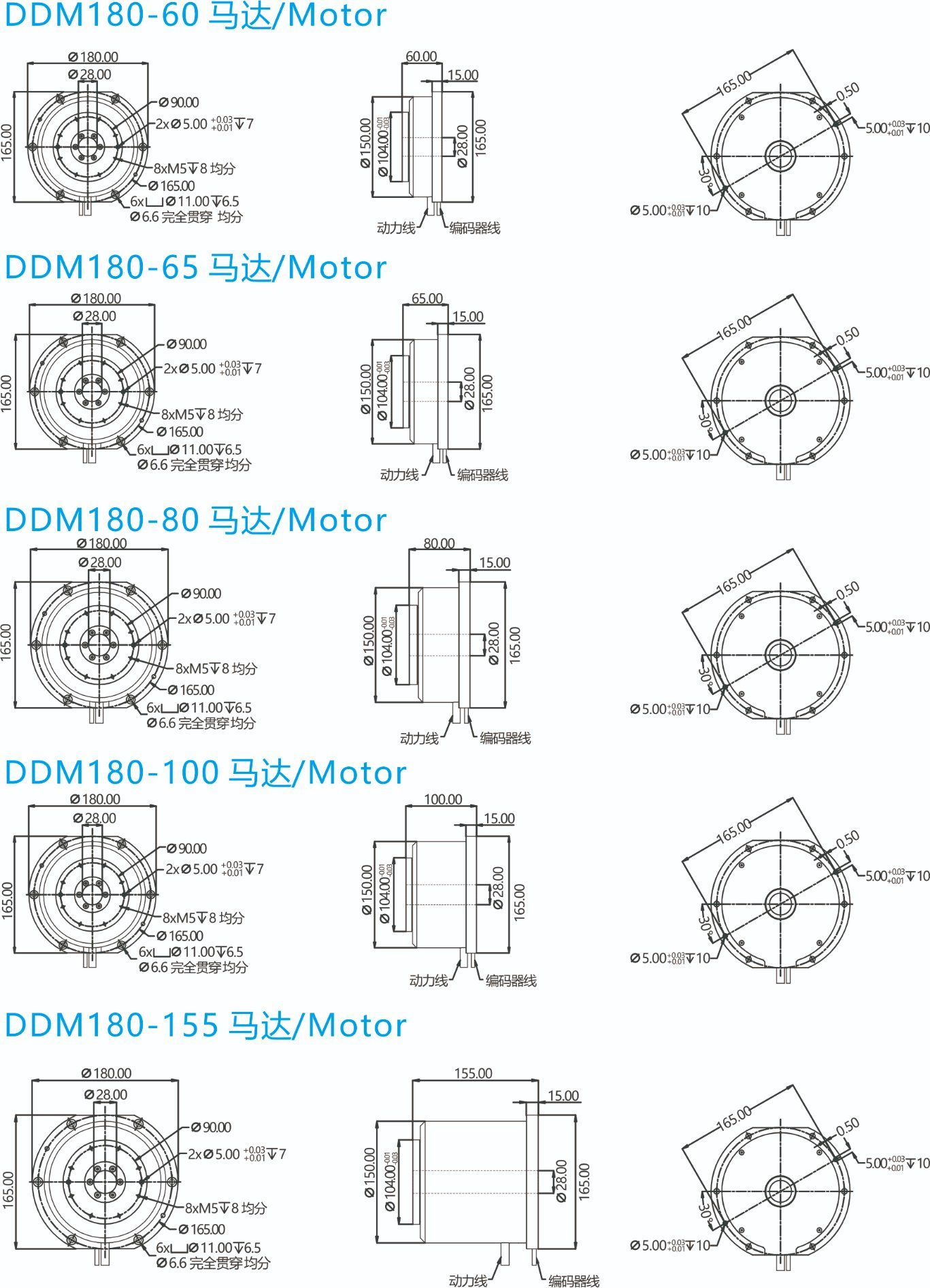

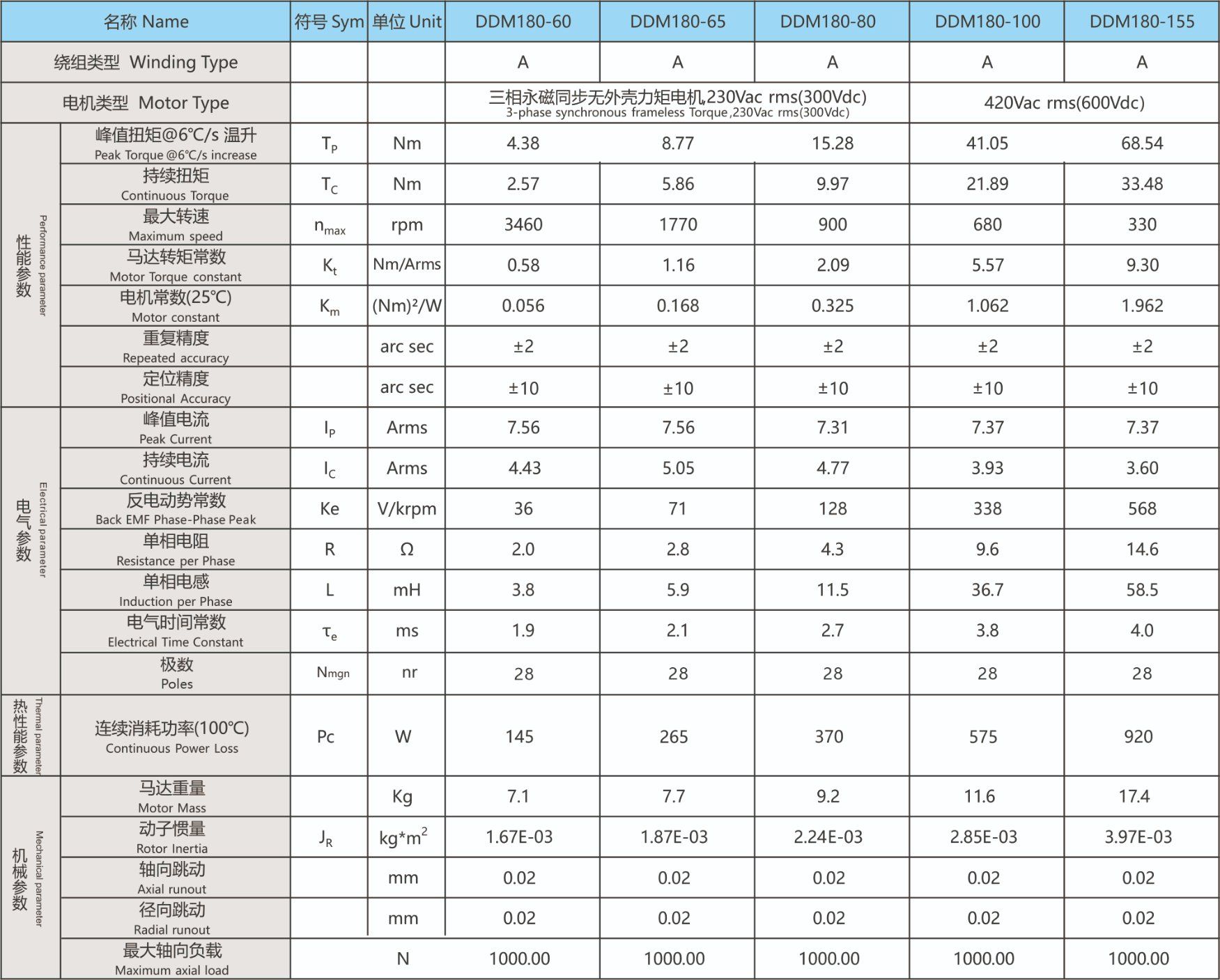

The series includes various models like DDM80, DDM140, DDM180, DDM260, and DDM408. Taking the DDM260 sub-series as an example:
DDM260-190: Continuous Torque: 118.00 Nm, Peak Torque: 271.00 Nm, Max Speed: 100 rpm.
DDM260-135: Continuous Torque: 76.00 Nm, Peak Torque: 175.00 Nm, Max Speed: 200 rpm.
DDM260-90: Continuous Torque: 35.00 Nm, Peak Torque: 80.00 Nm, Max Speed: 402 rpm.
Typical Applications:

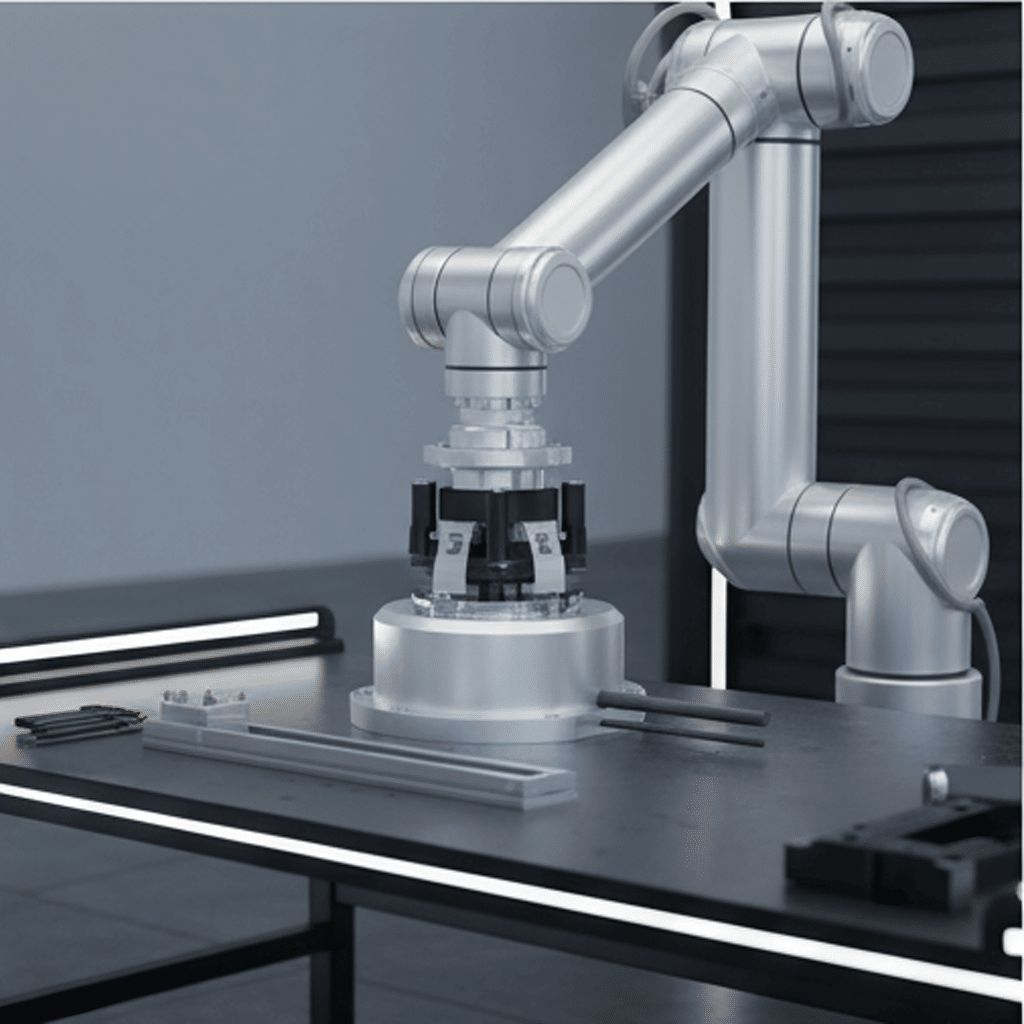

These motors are well-suited for high-precision automation in industries such as semiconductor manufacturing, lithium battery production, and advanced robotics.
