The TMTS Series is Ticbel's modular Maglev Transportation System, a high-performance, direct-drive linear transport solution based on a coreless linear motor principle.
Core Concept & Advantages:
It functions similarly to a linear motor, where electronically controlled stator modules drive movers (with permanent magnets) along a track. This design offers key benefits:

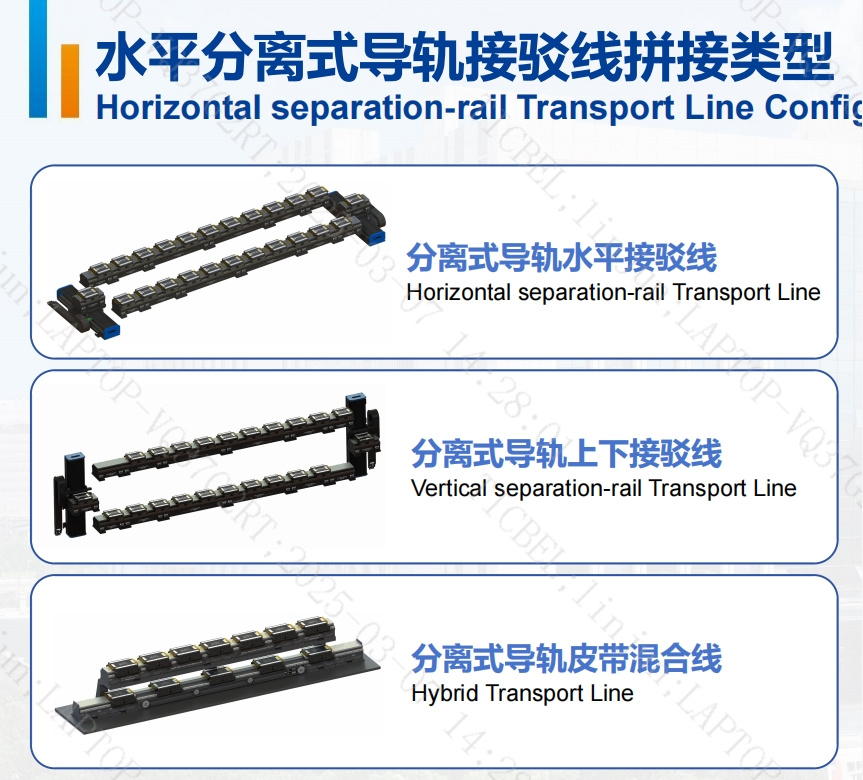

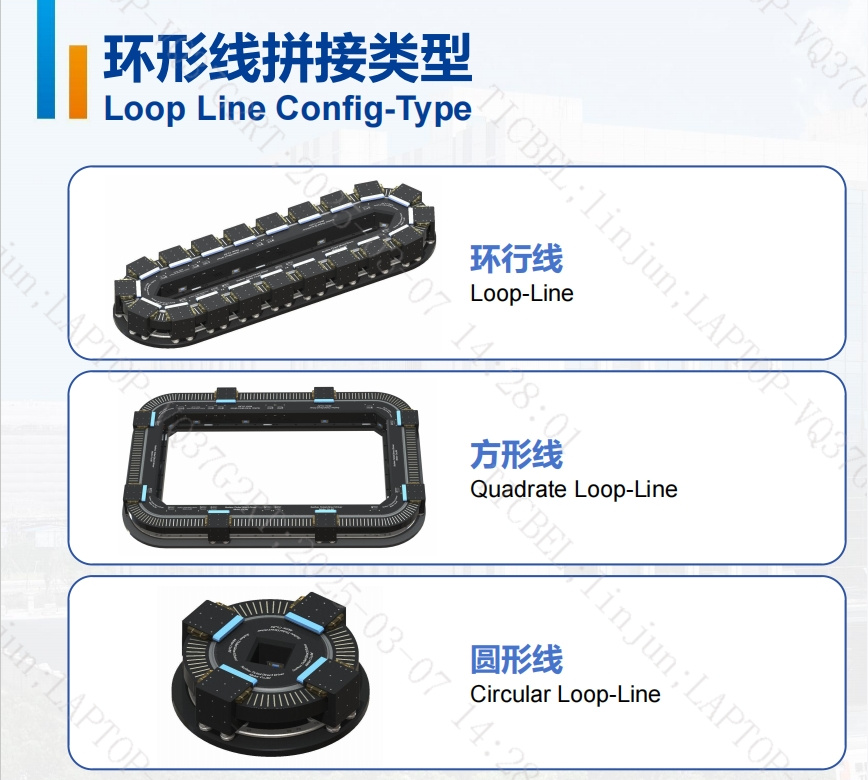

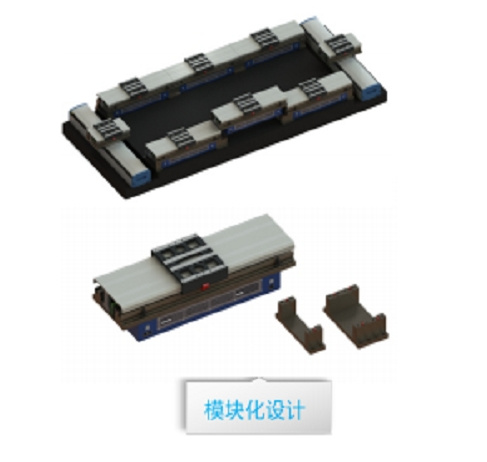

High Flexibility: Modular design allows for flexible layout configurations (straight lines, loops, squares, circles) and easy system expansion.
High Performance: Capable of high speed (max 2.5 m/s), high acceleration (max 2G), and high repeatability (±10 µm).
Easy Integration & Use: Simple instructions, support for universal protocols, and easy maintenance.
Key Technical Specifications (Representative):
Max Speed: 2.5 m/s
Max Acceleration: 2G
Repeatability: ±10 µm
Max Load: 40kg (customizable for higher thrust)
Communication: Ethernet IP, UDP, Modbus TCP
Power Supply: 48VDC
System Components & Applications:

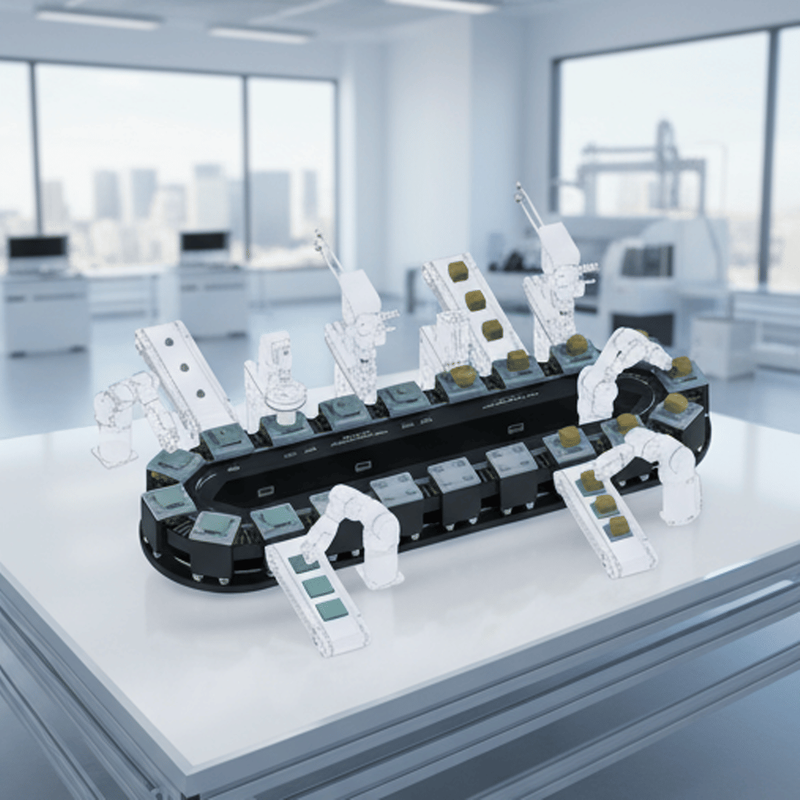

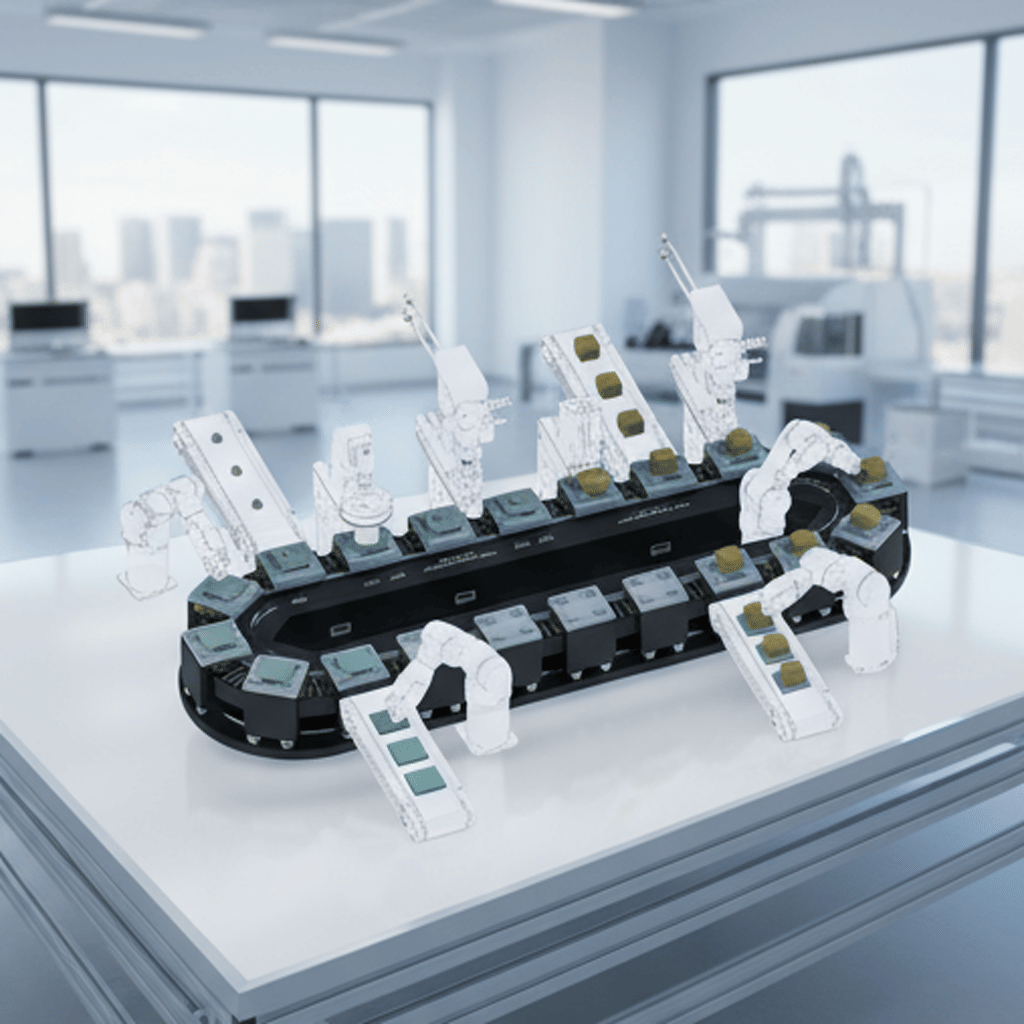

The complete system includes stator modules, movers, a dedicated TMTS controller, and drivers. It is widely used in scenarios requiring precise and flexible material handling, such as 3C electronics manufacturing, semiconductor production, and lithium battery assembly lines.
