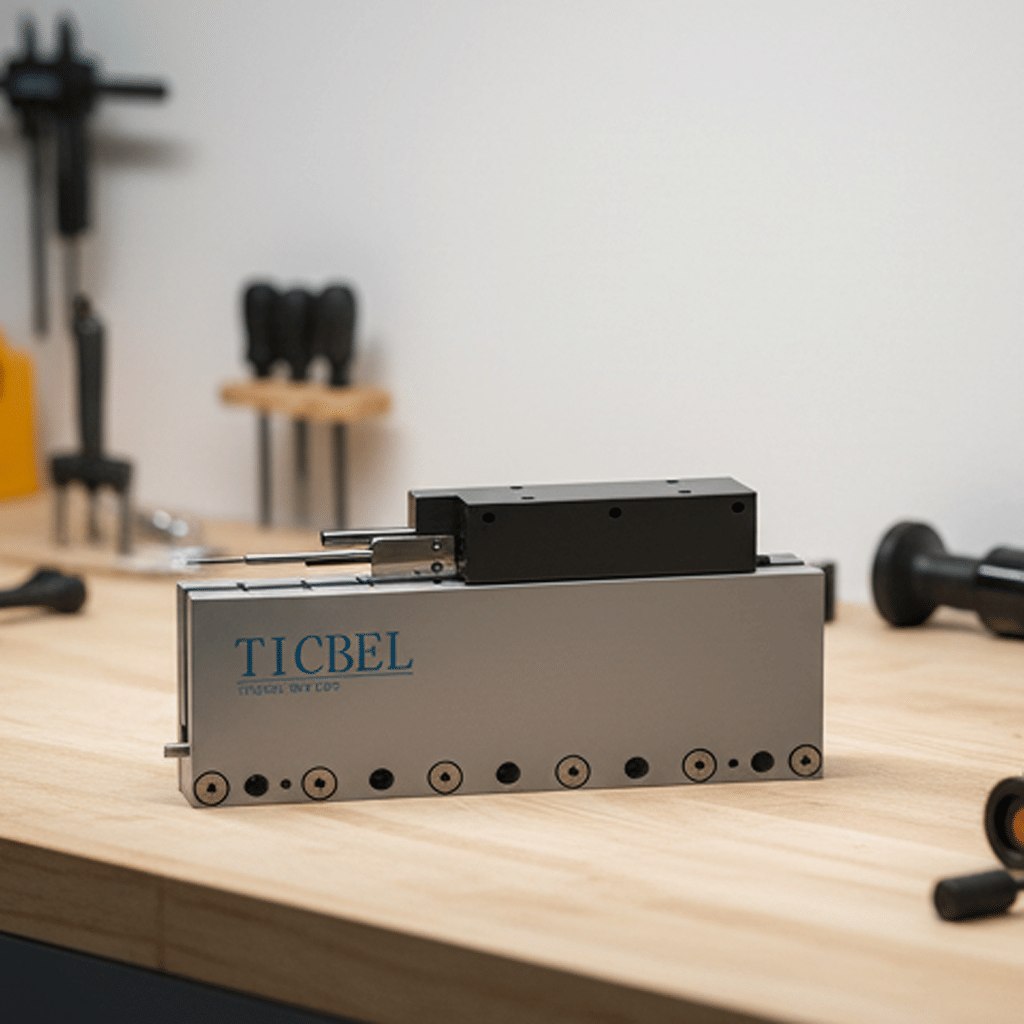

The LMU 30-114 Series is part of Ticbel's family of ironless linear motors. This design provides several key advantages for high-precision motion control applications.
Core Advantages:
Zero Attraction Force & Cogging: The ironless core eliminates magnetic attraction between the mover and stator, resulting in exceptionally smooth motion without cogging effects.
High Efficiency & Low Heat: With no iron losses in the coil, these motors operate efficiently with minimal heat generation.
Compact Design: Offers a high force density in a relatively small package.
Performance Range:

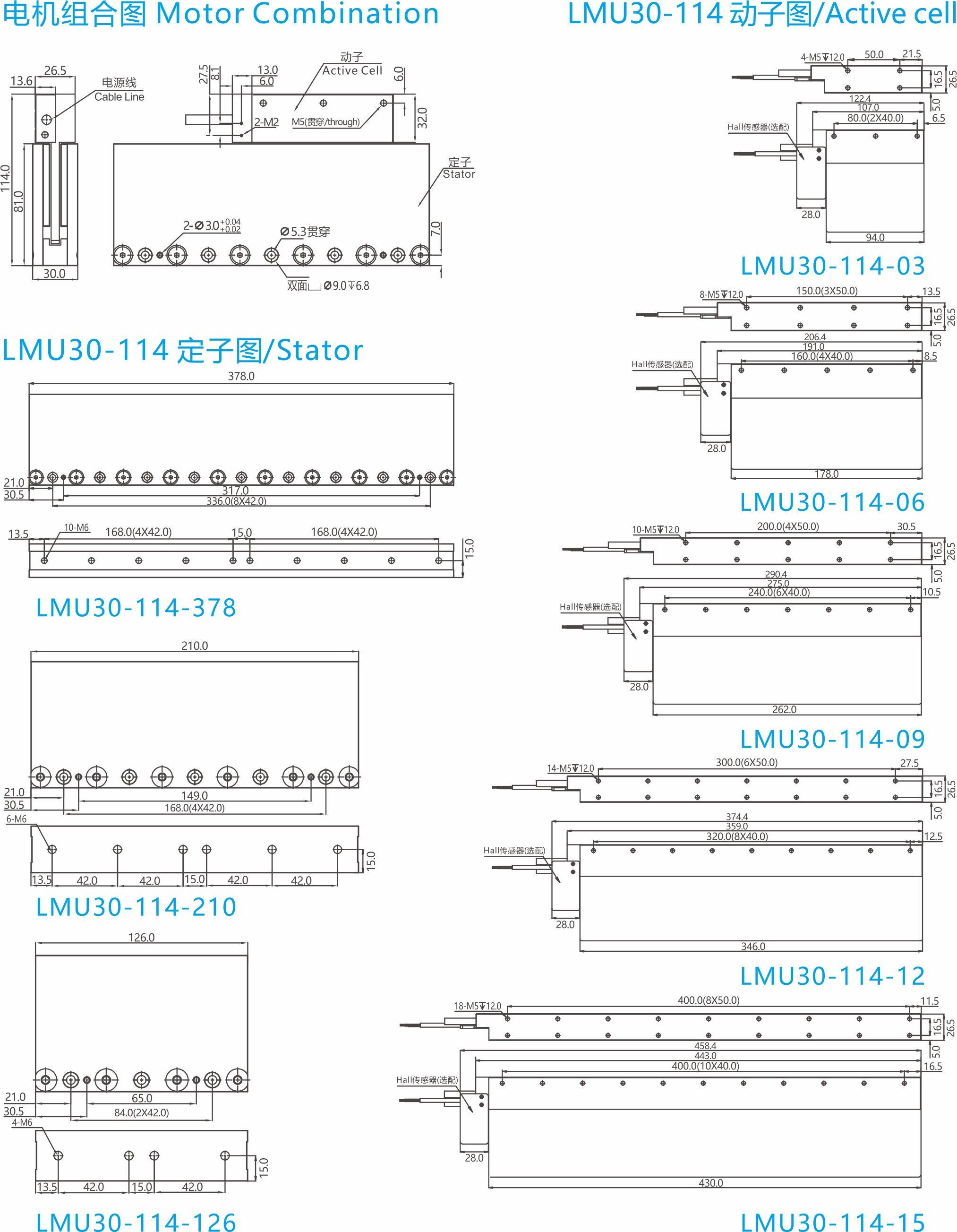

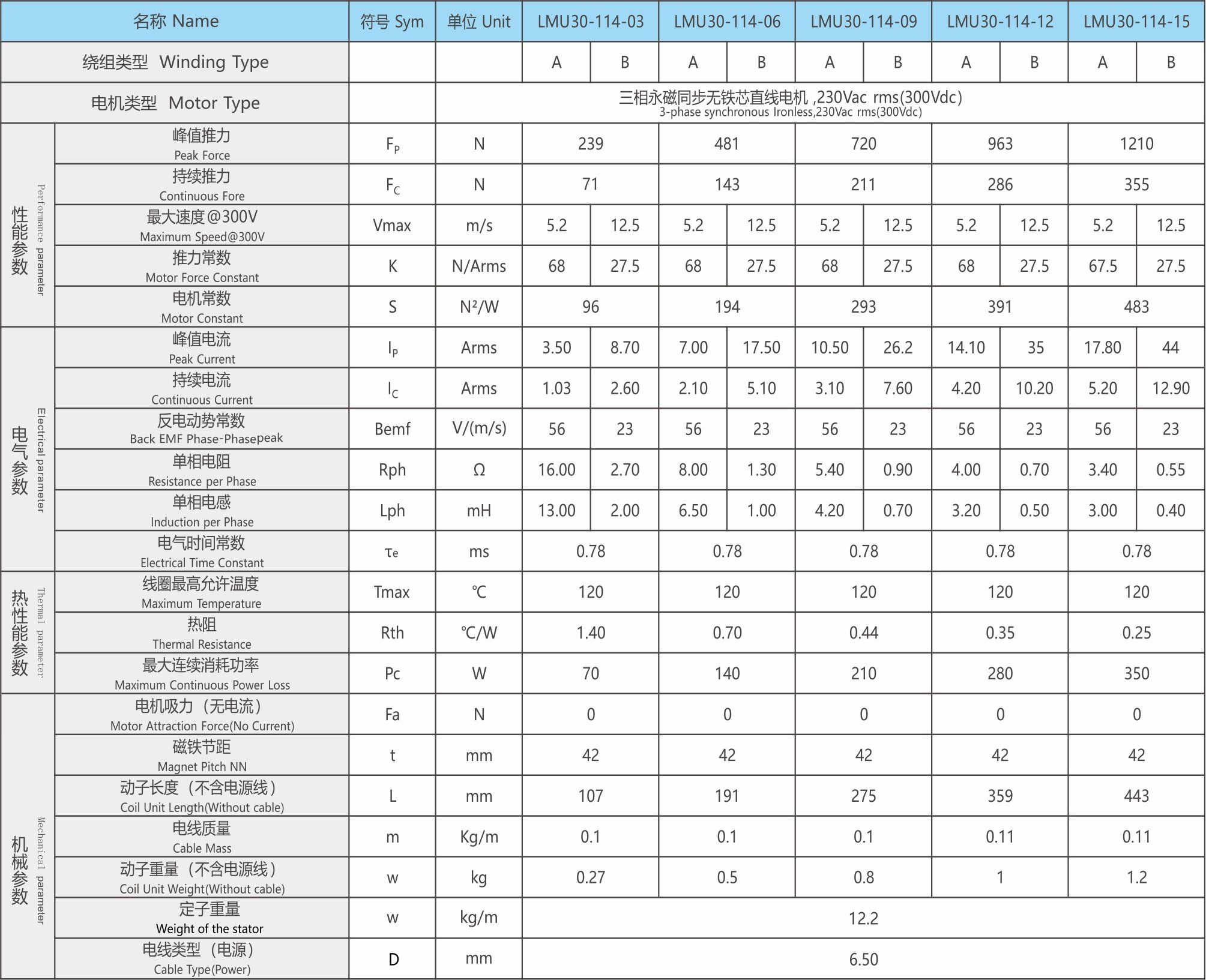

The series includes models (e.g., LMU30-114-03, -06, -09, -12, -15) that deliver a wide range of forces:

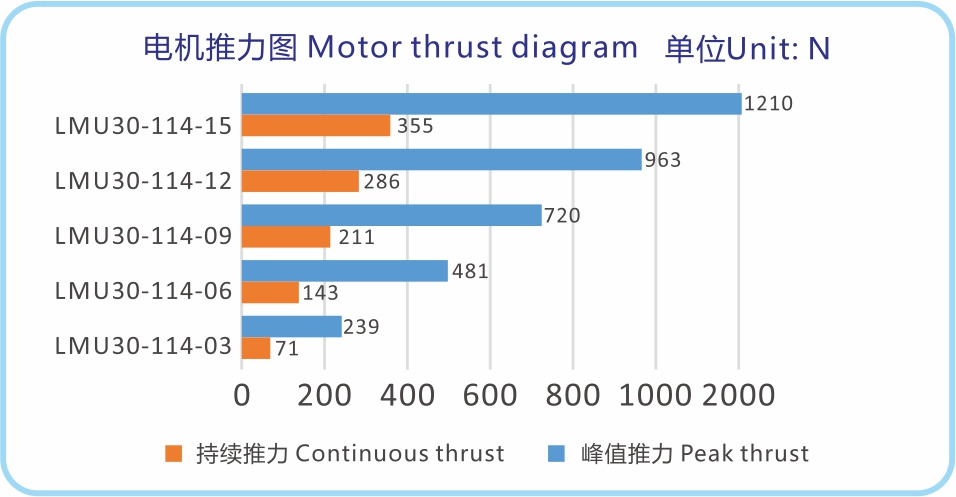

Continuous Force: From approximately 71 N to 355 N.
Peak Force: Significantly higher, supporting short-duration, high-acceleration moves.
Typical Applications:
These motors are ideal for applications demanding smooth motion, high accuracy, and fast response, such as precision automation stages, semiconductor equipment, and optical positioning systems.
