The DDM Motor series is Ticbel's lineup of frameless, direct-drive torque motors designed for high-precision rotary motion applications.
Core Advantages:
Direct Drive & Zero Backlash: Eliminates gears and couplings, providing exceptional positioning accuracy with repeatability of ±2 arc seconds.
High Torque Density: Delivers significant torque in a compact, frameless design.
Maintenance-Free: Non-contact operation ensures long service life.
Key Performance & Models:
These are 3-phase synchronous frameless torque motors, typically operating at 230Vac rms (300Vdc). The series includes multiple models (e.g., DDM260, DDM280, DDM408) covering a wide torque range. For instance, the DDM260 sub-series offers continuous torque from 35.00 Nm to 118.00 Nm and peak torque up to 271.00 Nm.
Typical Applications:
Ideal for demanding automation in semiconductor manufacturing, machine tools, and robotics where high precision and reliability are critical.The DDM series is a line of direct-drive rotary torque motors from Ticbel. They are frameless, three-phase permanent magnet synchronous motors designed for applications requiring high precision, high torque, and minimal maintenance.
Key Features & Advantages:
Direct Drive & High Precision: Features zero backlash and gearless design, eliminating mechanical transmission errors and wear.
High Torque Density: Offers a wide range of continuous torque, for example, from 35.00 Nm to 118.00 Nm for the DDM260 models.
Excellent Accuracy: Provides high repeatability (±2 arc seconds) and positional accuracy (±10 arc seconds).
Representative Models & Performance:
The series includes various models like DDM80, DDM140, DDM180, DDM260, and DDM408. Taking the DDM260 sub-series as an example:
DDM260-190: Continuous Torque: 118.00 Nm, Peak Torque: 271.00 Nm, Max Speed: 100 rpm.
DDM260-135: Continuous Torque: 76.00 Nm, Peak Torque: 175.00 Nm, Max Speed: 200 rpm.
DDM260-90: Continuous Torque: 35.00 Nm, Peak Torque: 80.00 Nm, Max Speed: 402 rpm.
Typical Applications:
These motors are well-suited for high-precision automation in industries such as semiconductor manufacturing, lithium battery production, and advanced robotics.The DD Motor series refers to Ticbel's comprehensive range of Direct Drive rotary motors, which primarily include two major families: the DDM series (frameless torque motors) and the DDE series (framed servo motors).
Core Advantages:
Direct Drive & Zero Backlash: Eliminates mechanical transmission components like gears and couplings, providing exceptional positioning accuracy (e.g., repeatability of ±2 arc seconds).
High Torque Density: Delivers significant torque in a compact design.
Maintenance-Free Operation: Non-contact principle ensures long service life.
Key Series & Models:
DDM Series: Frameless torque motors designed for integration into custom machinery. Models range from DDM80 to DDM408, offering high continuous and peak torque. For example, the DDM408 sub-models provide substantial torque with high axial load capacity.

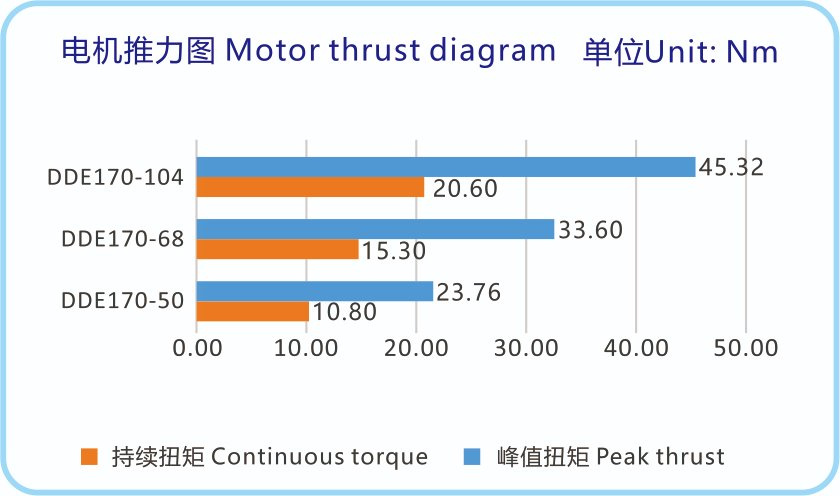

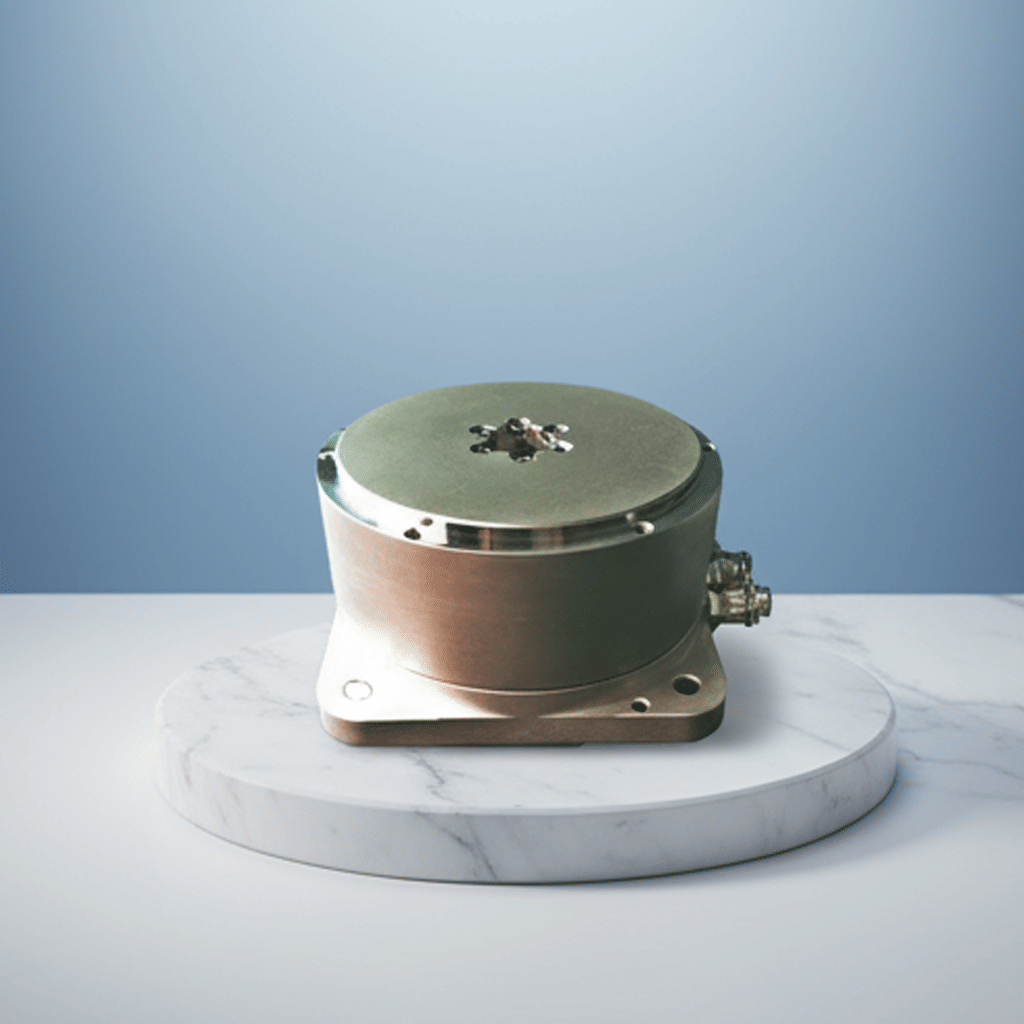

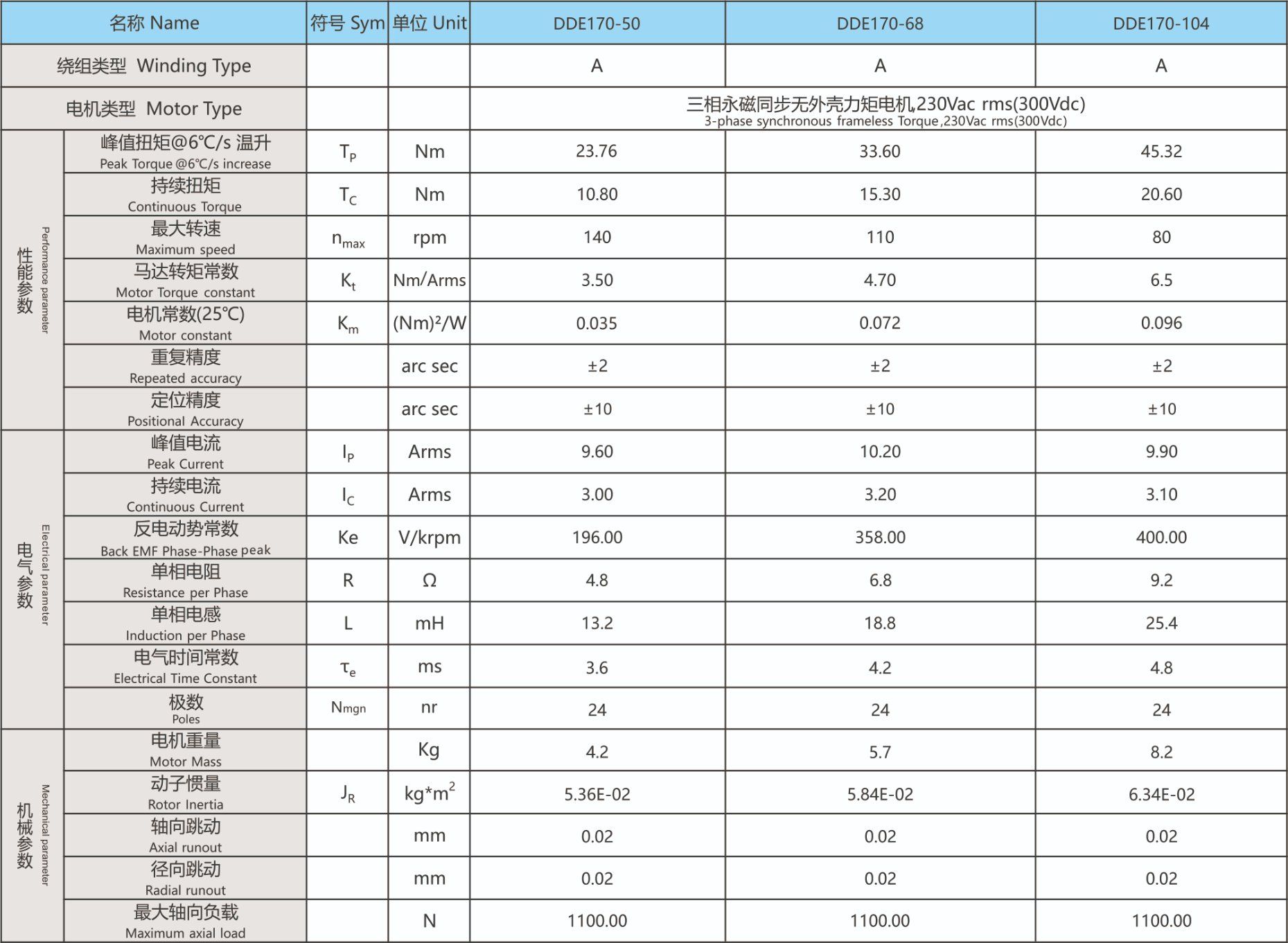

DDE Series: Framed servo motors, such as the DDE170 series, which offer continuous torque from 10.80 Nm to 20.60 Nm and are ready for easy mounting.
Typical Applications:
These motors are ideal for high-precision automation in industries like semiconductor manufacturing, lithium battery production, machine tools, and advanced robotics
